AIR DIAPHRAGM PUMP

E6 1/4" Elima-Matic Pumps

Get reliable performance with the non-stalling, lube-free air valve system in Versa-Matic's E6 1/4” pump. Leak-free design reduces downtime, ensuring continuous, reliable pump performance.

The E6 1/4" Pump...

  • features dual threaded manifolds
  • offers optional manifold configurations
  • provides an integrated muffler
  • is self-priming

Download product information for the E6 product line (PDF format):
Data Sheet (specifications, performance charts & dimensions)
Brochure


Specifications



English

Metric

Flow Rate

adjustable to

0-4 gpm

0-15 lpm

Port Size

Inlet and Outlet

0.25" NPTF I.D.


0.50" NPTM O.D.

Air Inlet

0.25" NPTF



Air Exhaust

0.75" NPTF



Suction Lift

5.83' Dry/25.5' Wet (1.78m/777m)

Max. Particle Size

(Diameter)

0.3125"

1mm

Shipping Weights

Polypropylene

3.38 lbs

1.53 kg

PVDF

4.13 lbs

1.87 kg

Groundable Acetal

5.00 lbs

2.27 kg

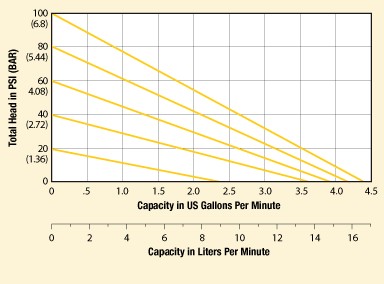

Performance Chart



Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.

E8 3/8" Mini-Matic Pumps

Versa-Matic® provides maximum performance in a mini package with our E8 3/8" pumps. Small enough to fit in your hand, yet capable of pumping up to 6.8 gallons per minute, these pumps can be mounted upright, sideways, and even inverted to adapt to your application. They also feature our patented Elima-Matic® Air Valve System to deliver non-stalling, non-icing, lube-free operation as well as the elimination of blow-by. E8 pumps are available in Polypropylene and Kynar® wetted materials of construction, with XL (Santoprene®), Geolast® or PTFE interiors.

Download product information for the E8 product line (PDF format):
Data Sheet (specifications, performance charts & dimensions)
Brochure


Specifications

  English Metric
Flow Rate
adjustable to 0-6.8 gpm 0-26 lpm
Port Size
Inlet and Outlet 3/8" NPTF (BSP)
Air Inlet 0.25" NPTF
Air Exhaust 0.25" NPTF
Suction Lift
Dry 11' 3.4m
PTFE Dry 11' 3.4m
Max. Particle Size
Diameter 0.10" 2.5mm
Shipping Weights
Polypropylene 3.0 lbs 1.4 kg
Kynar 3.0 lbs 1.4 kg

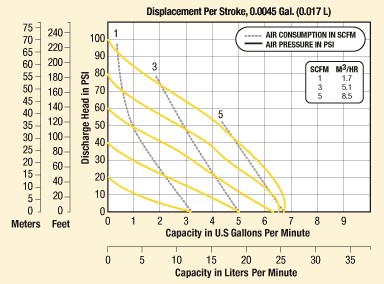

Performance Chart

Caution: Do not exceed 100 psig (6.8 bars) air supply or liquid pressure.

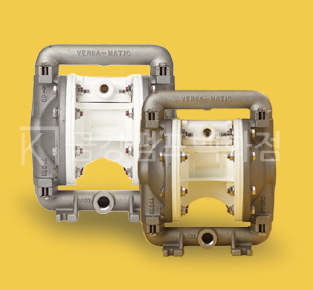

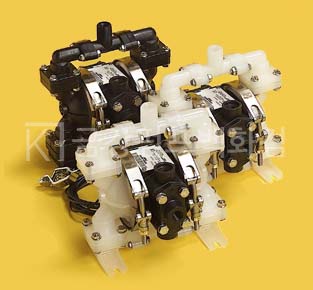

E5 1/2" Elima-Matic Pumps



Leak-free bolted construction provides a greater positive seal with Versa-Matic's E5 1/2" pump. Elima-Matic's air valve system provides the reliability you need and lets you transfer chemicals safely and confidently.
The E5 1/2" Pump...

  • is available in either plastic or metal
  • supplies a corrosion-resistant air section
  • provides multiple porting options
  • offers an adaptable footprint
  • is self-priming
  • offers center port and split manifolds on plastic bolted pumps

Download product information for the E5 line (PDF format):
Data Sheet (specifications, performance charts & dimensions)
Brochure

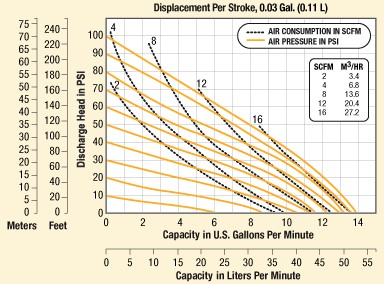

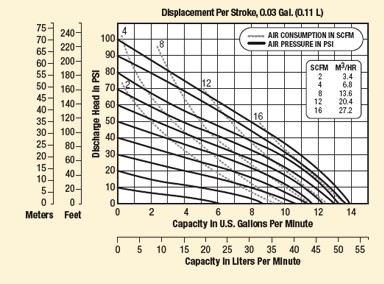

Performance Chart

Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

Bolted Metallic



Specifications

  English Metric
Flow Rate
adjustable to 0-14 gpm 0-53 lpm
Port Size
Inlet 0.50" NPT
Discharge 0.50" NPT
Air Inlet 0.375" NPT
Air Exhaust 0.375" NPT
Suction Lift
15' Dry/25' Wet (6.096m/7.62m)
PTFE: 5' Dry/10' Wet (1.52/3.048m)
Max. Particle Size
(Diameter) 0.0625" 1.6mm
Shipping Weights
Stainless Steel 18 lbs 8.17 kg
Hastelloy C 18 lbs 8.17 kg
Aluminum 15 lbs 6.8 kg


Bolted Plastic



Specifications

  English Metric
Flow Rate
adjustable to 0-14 gpm 0-53 lpm
Port Size
ID 0.50" NPT
OD 0.75" NPT
Air Inlet 0.375" NPT
Air Exhaust 0.375" NPT
Suction Lift
15' Dry/25' Wet (6.096m/7.62m)
PTFE: 5' Dry/10' Wet (1.52m/3.048m)
Max. Particle Size
(Diameter) 0.0625" 1.6mm
Shipping Weights
Polypropylene 10 lbs 4.54 kg
Kynar® 10 lbs 4.54 kg
Groundable Acetal 10 lbs 4.54 kg

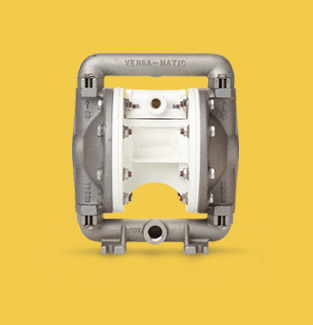

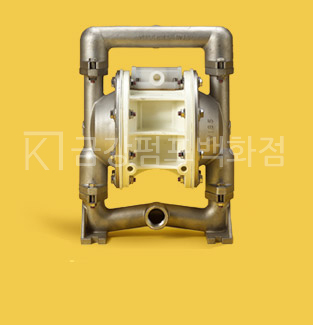

E7 3/4"Elima-Matic Pumps

Depend on the Versa-Matic® E7 3/4" aluminum diaphragm pump for reliable use in lubrication, tire filling, adhesive dispensing, OEM systems, and many industrial applications. The E7 3/4" pump...

  • features the exclusive Elima-Matic® air valve system
  • shares standardized parts with the E5 1/2" pump line
  • offers metallic or non-metallic air sections
  • can be grounded (some models)
  • features leak-free bolted construction

Download product information for the E7 product line (PDF format):
Data Sheet (specifications, performance charts & dimensions)
Manual



Specifications

  English Metric
Flow Rate
adjustable to 0-14 gpm 0-53 lpm
Port Size
Inlet and Outlet 0.75" NPT
Air Inlet 0.375" NPTF
Air Exhaust 0.375" NPTF
Suction Lift
15'' Dry/25' Wet (6.096m/7.62m)
Teflon® 5'' Dry/10' Wet (1.52m/3.048m)
Max. Particle Size
(Diameter) 0.0625" 1.6mm
Shipping Weights
Aluminum 15 lbs   6.8 kg



Performance Chart

Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

E1 1" Elima-Matic Pumps



Versa-Matic's E1 1" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. The E1 1" plastic bolted pump comes in optional and standard porting models, and offers a flow rate of 0-35 gpm.

The E1 1" Pump...

  • is available in either plastic or metal
  • supplies a corrosion-resistant air section
  • provides multiple porting options
  • is self-priming
  • offers center port and split manifolds on plastic bolted pumps
  • offers UL listed models on bolted metallic pumps

Download product information for the E1 line (PDF format):
Data Sheet (specifications, performance charts & dimensions)
Brochure

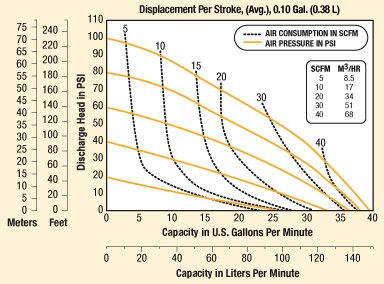

Performance Chart

Note: For E1 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.

Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.

Options: Center Port and Split Manifolds Available



Bolted Metallic



Specifications

  English Metric
Flow Rate
adjustable to 0-35 gpm 0-132 lpm
Port Size
Inlet 1.0" Female NPT (BSP)
Discharge 1.0" Female NPT (BSP)
Air Inlet 0.375" NPTF
Air Exhaust 0.50" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.125" 3.17mm
Shipping Weight
Aluminum 31 lbs 14.07 kg
Stainless 42 lbs 19.05 kg
Hastelloy C 42 lbs 19.05 kg


Bolted Plastic: Standard Porting



Speficications

  English Metric
Flow Rate
adjustable to 0-35 gpm 0-132 lpm
Port Size
Inlet 1.0" ANSI/DIN Flanged
Discharge 1.0" ANSI/DIN Flanged
Air Inlet 0.375" NPT
Air Exhaust 0.50" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.125" 3.17mm
Shipping Weight
Polypropylene 24 lbs 10.9 kg
Kynar® 24 lbs 10.9 kg


Bolted Plastic: Optional Porting



Specifications

  English Metric
Flow Rate
adjustable to 0-35 gpm 0-132 lpm
Port Size
Inlet 1.0" ANSI/DIN Flanged
Discharge 1.0" ANSI/DIN Flanged
Air Inlet 0.375" NPT
Air Exhaust 0.50" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.125" 3.17mm
Shipping Weight
Polypropylene 24 lbs 10.9 kg
Kynar® 24 lbs 10.9 kg

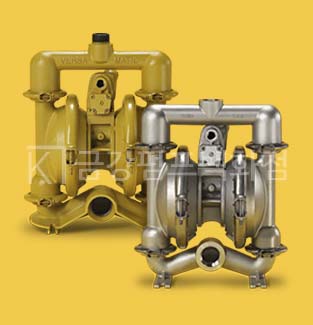

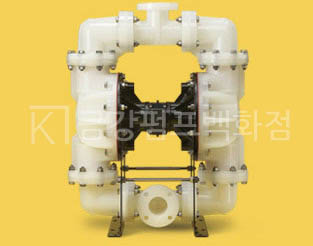

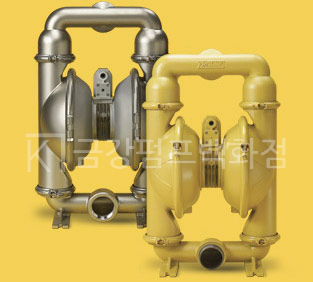

E4 1 1/2" Elima-Matic Pumps



The Elima-Matic air valve system ensures continuous, reliable performance in the E4 1-1/2" pump. Available in both clamped and bolted models with a flow rate of 0-72 gpm, this durable pump can handle infinite variable flows up to 90% solids.

The E4 1-1/2" Pump...

  • is available in either plastic or metal
  • supplies a corrosion-resistant air section
  • is self-priming
  • provides dimensional interchangeability with Wilden 1-1/2" pumps
  • offers horizontal discharge model on bolted metallic pump

Download product information for the E4 line (PDF format):
Data Sheet (specifications, performance charts & dimensions)

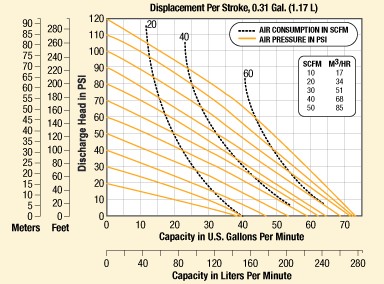

Performance Chart

Note: For E4 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.

Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.




Clamped Metallic



Specifications

  English Metric
Flow Rate
adjustable to 0-70 gpm 0-265 lpm
Port Size
Inlet 1.50" NPT (BSP)
Discharge 1.25" NPT (BSP)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.09m)
Max. Particle Size
(Diameter) 0.1875" 4.76mm
Shipping Weight
Aluminum 41 lbs 18.60 kg
Cast Iron 57 lbs 25.85 kg
Hastelloy C 57 lbs 25.85 kg
Stainless 57 lbs 25.85 kg




Bolted Metallic



Specifications

  English Metric
Flow Rate
adjustable to 0-72 gpm 0-275 lpm
Port Size
Inlet and Outlet
Metallic 1.50" ANSI/DIN
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.09m)
Max. Particle Size
(Diameter) 0.1875" 4.76mm
Shipping Weight
Stainless Steel 65 lbs 29.5 kg
Hastelloy C 68 lbs 30.8 kg




Bolted Plastic



Specificationts

  English Metric
Flow Rate
adjustable to 0-72 gpm 0-272 lpm
Port Size
Inlet 1.50" ANSI/DIN Flanged
Discharge 1.50" ANSI/DIN Flanged
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.09m)
Max. Particle Size
(Diameter) 0.1875" 4.76mm
Shipping Weight
Polypropylene 32 lbs 14.5 kg
Kynar® 45 lbs 20.4 kg

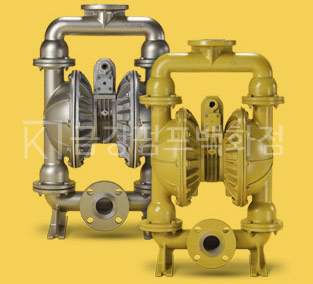

E2 2" Elima-Matic Pumps



Versa-Matic's E2 2" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. It is available in a clamped or bolted design, with some models offering a side discharge feature that prevents corrosive fluid from leaking onto the pump's center section.

The E2 2" Pump. . .

  • is available in either plastic or metal
  • avoids blow-by when the pump is online but not in use
  • is self-priming
  • provides dimensional interchangeability with Wilden 2" pumps
  • offers horizontal discharge model on bolted metallic pump

Download product information for the E2 line (PDF format):
Data Sheet (specifications, performance charts & dimensions)

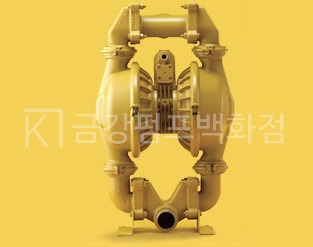

Clamped Metallic

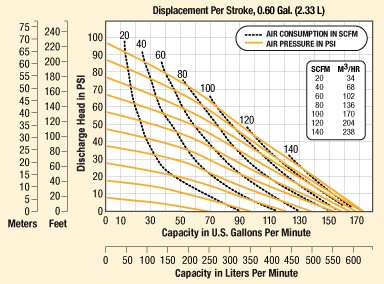

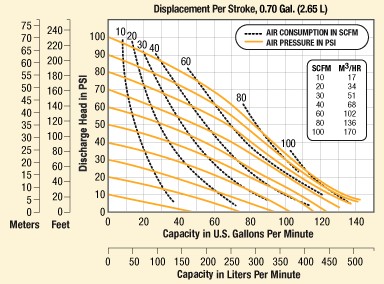

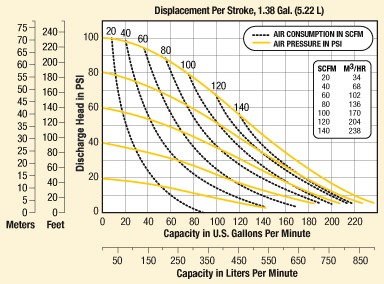

Performance Chart

Note: For E2 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.



Specifications

  English Metric
Flow Rate
adjustable to 0-155 gpm 0-586 lpm
Port Size
Inlet 2.0" NPT (BSP)
Discharge 2.0" NPT (BSP)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/25' Wet (6.09m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.25" 6.35mm
Shipping Weight
Aluminum 70 lbs 31.75 kg
Cast Iron 115 lbs 52.16 kg
Stainless Steel 115 lbs 52.16 kg
Hastelloy C 125 lbs 56.70 kg

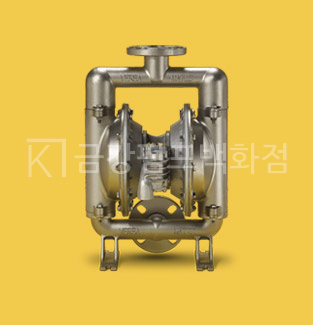

 Bolted Metallic

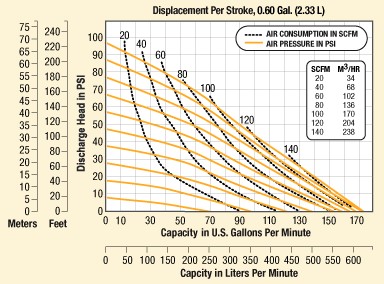

Performance Chart



Specifications

  English Metric
Flow Rate
adjustable to 0-155 gpm 0-586 lpm
Port Size
Inlet and Outlet
2.0" ANSI, 150 lb class (DIN 50)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/25' Wet (6.09m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.25" 6.35mm
Shipping Weight
Stainless Steel 120 lbs 54 kg
Hastelloy C 120 lbs 54 kg
Cast Iron 120 lbs 54 kg





Note: For E2 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.
Horizontal Discharge Model Available.




Bolted Aluminum




Performance Chart

Note: For E2 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.



Specifications

  English Metric
Flow Rate
adjustable to 0-174 gpm 0-658 lpm
Port Size
Inlet 2.0" NPT (BSP)
Discharge 2.0" NPT (BSP)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/25' Wet (6.09m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.43" 11mm
Shipping Weight
Aluminum 73.5 lbs 33 kg




Flap Valve




Performance Chart



Note: For E2FV pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.



Specifications

  English Metric
Flow Rate
adjustable to 0-180 gpm 0-681 lpm
Port Size
Inlet 2.0" Male NPT (BSP)
Discharge 2.0" Male NPT (BSP)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
10' Dry/10' Wet (3.048m/3.048m)
Max. Particle Size
(Diameter) 1.125" 28.57mm
Shipping Weight
Aluminum 88 lbs 39.92 kg




Bolted Plastic: Standard Porting




Performance Chart

Note: For E2P pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.



Specifications

  English Metric
Flow Rate
adjustable to 0-155 gpm 0-586 lpm
Port Size
Inlet 2.0" ANSI, 150 class (DIN 50)
Discharge 2.0" ANSI, 150 class (DIN 50)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/25' Wet (6.10m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.25" 6.35mm
Shipping Weight
E2PA 72 lbs 32.68 kg
E2PS 106 lbs 48.12 kg
E2KA 98 lbs 44.49 kg
E2KS® 132 lbs 59.92 kg


  Bolted Plastic: Optional Porting e  e


Performance Chart

Note: For E2P pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 100 psig (6.9 bars) air supply or liquid pressure.
Adjustable Inlet/Discharge.


Specifications

  English Metric
Flow Rate
adjustable to 0-155 gpm 0-586 lpm
Port Size
Inlet 2.0" ANSI, 150 class (DIN 50)
Discharge 2.0" ANSI, 150 class (DIN 50)
Air Inlet 0.50" NPT
Air Exhaust 0.75" NPT
Suction Lift
20' Dry/25' Wet (6.10m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.25" 6.35mm
Shipping Weight
E2PA 76.2 lbs 34.56 kg
E2PS 110.2 lbs 49.99 kg
E2KA 102.2 lbs 46.36 kg
E2KS® 136.2 lbs 61.78 kg

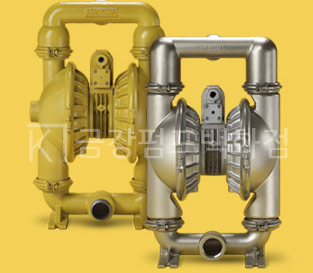

E3 3" Elima-Matic Pumps



Elima-Matic's non-stalling, lube-free air valve system allows the Versa-Matic E3 3" pump to provide reliable performance. Available in clamped or bolted models, with leak-free design that reduces downtime and ensures continuous operation.

The E3 3" Pump...

is available in either plastic or metal
can handle infinite variable flows up to 90% solids
is self-priming
provides dimensional interchangeability with Wilden 3" pumps
offers screen mount on aluminum model

Download product information for the E3 line (PDF format):
Data Sheet (specifications, performance charts & dimensions)
Brochure

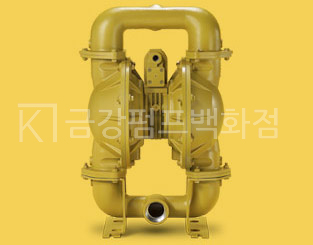

Clamped Metallic

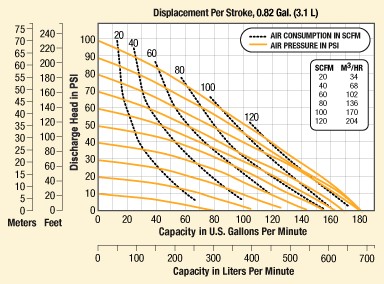

Performance Chart

Note: For E3 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.
Screen Mount available for aluminum model.





Specifications

  English Metric
Flow Rate
adjustable to 0-260 gpm 0-984 lpm
Port Size
Inlet 3.0" NPT BSP
Discharge 3.0" NPT BSP
Air Inlet 0.5" NPTF
Air Exhaust 1.0" NPT
Suction Lift
20' Dry/25' Wet (6.10m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.375" 9.52mm
Shipping Weight
Aluminum 115 lbs 52.16 kg
Cast Iron 210 lbs 95.25 kg
Stainless Steel 210 lbs 95.25 kg
Hastelloy C 220 lbs 99.79 kg



Bolted Metallic

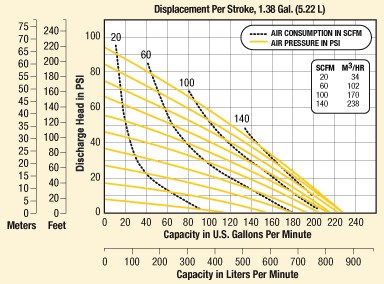

Performance Chart



Note: For E3 pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.



Specifications

  English Metric
Flow Rate
adjustable to 0-230 gpm 0-871 lpm
Port Size
Inlet and Outlet 3" ANSI 150 lb Class
DIN 80 Flange
Air Inlet 0.50" NPTF
Air Exhaust 1.0" NPT
Suction Lift
20' Dry/25' Wet (6.10m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.75" 19.1 mm
Shipping Weight
Aluminum 150 lbs 68 kg
Hastelloy C 275 lbs 125 kg
Stainless Steel 250 lbs 113 kg
PTFE is a registered trademark of DuPont.

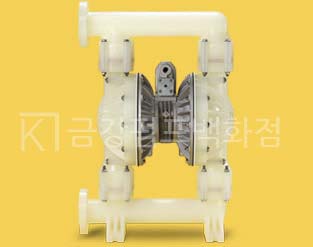

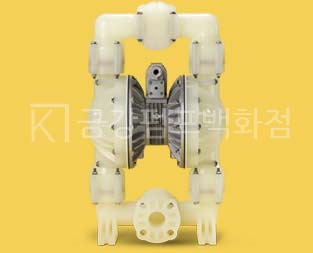

Bolted Plastic






Performance Chart



Note: For E3P pumps fitted with PTFE diaphragms, reduce water discharge figures by 20%. Suction lift is reduced to 10' (3.05m) dry and 20' (6.10m) wet.
Caution: Do not exceed 125 psig (8.5 bars) air supply or liquid pressure.



Specifications

  English Metric
Flow Rate
adjustable to 0-238 gpm 0-901 lpm
Port Size
Inlet and Outlet 3" ANSI or
DIN 80 Flange
Air Inlet 0.75" NPTF
Air Exhaust 1.00" NPTF
Suction Lift
20' Dry/25' Wet (6.10m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter) 0.71" 18 mm
Shipping Weight
Polypropylene 231 lbs 105 kg
PVDF 315 lbs 143 kg



이 펌프와 관련된 유용한정보

이 펌프에 대한 최근 상담내역

총 16 건
이 펌프에 대해 온라인 상담하기
접수번호접수시각업체명처리결과담당자
36562023-05-22 10:31:56피*****처리완료금강펌프
35932023-02-03 09:27:51코*처리완료금강펌프
35452022-11-03 10:47:17CJ*****처리완료금강펌프
33432021-11-09 15:28:04(*********처리완료금강펌프
30772020-05-27 14:55:38아*******처리완료금강펌프
30662020-05-07 16:46:06해*****처리완료금강펌프
29452019-07-18 11:39:28정****처리완료금강펌프
28822019-02-13 09:49:04(******처리완료금강펌프
27662018-06-04 13:14:49에*********처리완료금강펌프
26712017-10-19 19:52:11일******처리완료금강펌프

POWDER PUMP 파우더펌프 ( 분체 이송 펌프 ) ▶ ◀ 소형 SUS MAGNEITC PUMP ( -90도 ~ 고온 400도 펌프 ) 목록으로
loading wating bg bg
