| MODEL | R-1.5K | R-2.5K | R-4.5K | R-7.5K | R-15K |
| Displacement speed ∫ /min | 1550 | 3000 | 3700 | 7500 | 15000 |
| Ultimate pressure (Tprr) | 5 ×10-³ | 5 ×10-³ | 5 ×10-³ | 5 ×10-³ | 5 ×10-³ |
| Inlet port | VG50 | VG80 | VG80 | VG100 | VG150 |
| Outler port | VF50 | VF65 | VF80 | VF100 | VF125 |
| Power requirements(Kw) | 2.2 | 3.7 | 7.5 | 11 | 22 |
| Rptationnal speed(R.P.M) | 400 | 440 | 420 | 380 | 370 |
| Oil capacity(∫) | 5 | 6 | 10 | 20 | 55 |
| Weight(including moteo)㎏ | 265(297) | 342(380) | 444(518) | 742(849) | 900(1120) |

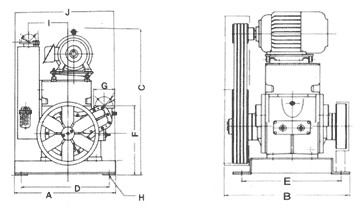

| MODEL | A | B | C | D | E | F | G | H | I | J |
| R-1.5K | 700 | 545 | 963 | 625 | 440 | 422 | ￠120 | ￠13 | 332 | 782 |
| R-2.5K | 740 | 694 | 969 | 665 | 575 | 420 | ￠160 | ￠13 | 361 | 846 |
| R-4.5K | 780 | 717 | 1114 | 680 | 545 | 515 | ￠160 | ￠20 | 383 | 888 |
| R-7.5K | 1000 | 844 | 1353 | 870 | 640 | 640 | ￠180 | ￠20 | 480 | 1120 |
| R-15K | 1305 | 1255 | 1520 | 1175 | 970 | 810 | ￠235 | ￠20 | 628 | 1445 |
