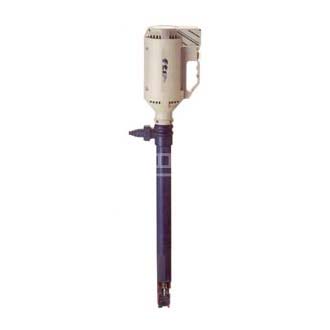

DRUM PUMP

특 징

  • Polypropylene, PVDF or 316SS tubes
  • Splashproof, TEFC, Explsoionproof or Air motors
  • Unique double suction impeller
  • Variable flow orifice (PFP & PFV only)
  • Pump interchangeable with motors
  • Easy disaaaembly for cleaning
  • Dry run capability

성 능

  • 1.8 SG
  • Max. temperatures : PFP - 160oF (71℃)
  • PFV - 120oF (49℃) : PFS - 220oF (105℃)
ELECTRIC - 50/60 Hz
AIR
* 40 gpm (151 lpm) * 30 gpm (113 lpm)
* 80 feet TDH (24 m) * 60 feet TDG (18m)
* 500 cps maximum * 330 cps maximum

NOTE:Explosionproof motor performance is reduced to 7 gpm and 18 feet TDH maximum. This reduction to reduce static eletricity.

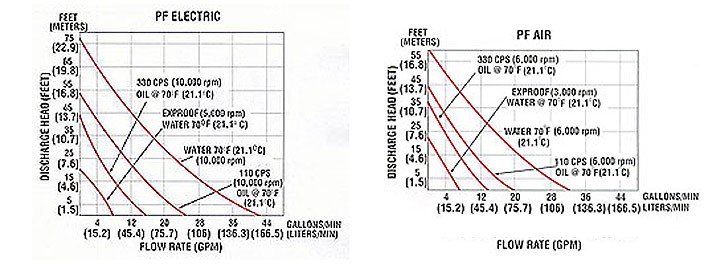

성능곡선

Tube Specifications

MODEL TUBE SEAL SHAFT INTERNALS HOSE SIZE
REQUIRED
MATERIAL DIA. LENGTH
in. cm
PFP Polypro-
pylene

2"
(5.1cm)

27
40
48

69
102
122

Sealless Alloy625 Polypropylene and
PTFE PVDF Viton"
1"
PFV PVDF

2"
(5.1cm)

27
40
48

69
102
122

Sealless Alloy625

PVDF
PTFE
Viton"

1"
PFS SS

2"
(5.1cm)

27
40
48

69
102
1 22

Sealless SS

Staimless Steel
PTFE
Tefzel Viton"

1"

* Viton is a rehistered trademark of Dupont Dow Elastomers

 Motor Specifications

Electric motors are available in 115V or 230V, single phase, 50/60 Hz. All are equipped with 12 ft . (3.5m) cord, circuit breaker with manual reset, internal cooling fan, and builtrated continuous duty.

Air motor (M6) shown with regulator valve, muffler. 80-100 psi 25 cfm.

MODEL TYPE CERTIFICATIONS

ELECTRICAL
REQUIREMENTS

HP RPM
M3 Weatherproof CSA 115VAC/50-60 Hz 1/2 10,000
M3T TEFC CSA 115VAC/50-60 Hz 1/2 10,000
M3X

EXP - Class 1
Div.1, Group D

CSA 115VAC/50-60 Hz 1/10 5,000
M5

Splashproof
IP144

CE 230VAC/50-60 Hz 1/2 10,000
M5T

TEFC
IP54

CE 230VAC/50-60 Hz 1/2 10,000
M5X

EXP - IP45
EEx d TTA, T4

CE
Ex
DEMKO
TUV

230VAC/50-60 Hz 1/10 5,000
M10X*

EXP - IP45
EEx d TTA, T4

CE
Ex
DEMKO

230VAC/50-60 Hz 1/2 10,000
M6+ Air CE - 1/2 300-6,000
M6X+ Air CE - 3/4 300-3,000

NOTE:When pumping flammables, use explosionproof electric or M6X air motors on stainless steel tubes with a static protection kit #A100835
* Recommended for pumping non-flammables in an explosionproof environment
+ non-electrical operation means the possibility of explosion from igniting flammable gases is reduced.
