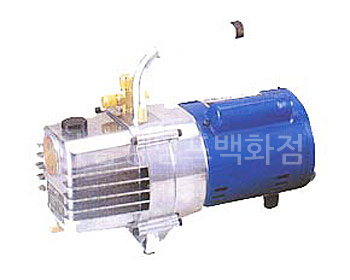

소형 진공펌프

특 징

  • Fast Pumping
  • Cool Operation
  • Continuous Pumping
  • Energy Saving Motor
  • Very Quiet
  • Small and Light Weight
  • Refrigeration/Air Conditioner Coolant Srvice
  • Freeze Drying
  • Vacuum Degassing
  • Vacuum Oven/Furnace

표준사양

Description Unit KSV-85 KSV-140
Pumping Speed ℓ/min 85 140
Ultimate Pressure GB.Closed Torr(Pa) 1×10-³(1.33×10-¹) 1×10-³(1.33×10-¹)
GB. Open 1×10-²(1.33) 1×10-²(1.33)
Power Input Volts AC110V/220V/1¢ AC110V/220V/1¢
Full Load Power Kw 0.3 0.3
Motor Speed r.p.m 1700 1700
Oil Capacity cc 600 600
Weight 15 16
Intake Port mm PF-3/8 ×2.PF-1/4 PF-3/8 ×2.PF-1/4
Operations Temperature 7-40 7-40
Overall Dimensions mm 160(W)×377(L)×296(H) 160(W)×377(L)×296(H)

 Dimensions
